As we escort the
Tomcat off the carrier decks and usher the Hornet aboard, one cannot help but
get teary eyed at the thought of bidding farewell to this legendary fighter. It
seems as if the United States Navy is accelerating it's retirement every time I
turn around with Boeing turning out the Super Hornet off the assembly line so
fast.
Don't get me wrong, I love the Hornet. It's just not the Tomcat. I
think the beefy F-14 made the movie Top Gun more awesome than the F-18 could
have. That is of course, if the Hornet was flying in 1986. The Tomcat is
an American icon, sort of like the Chevy Corvette or Harley Davidson. Some
analogies I like to make are like this. If the Tomcat were a car, it wouldn't be
a nimble sports car. It would be a brutish loud as hell muscle car with glass packs the whole nine yards. If it were a pro-athlete it would not
resemble a baseball or tennis player, but a huge linebacker ready to plow
anything in it's path. I think most will agree the F-14 or rather the
"Tomcat'" is the best known fighter in America for it's name while
probably the F-16 is better known for it's number. In 1995 my girlfriend (now
lovely Wife) stepped into my Corvette for the first time which had an
illuminated tangerine instrument cluster. "Wow, it look's like an F-16 in
here." But she somehow knew Tom Cruise flew a Tomcat.
Nuf said onto the kit.
I bought this kit about 2 ½ years ago and it sat in the closet of future
build projects for all that time. To be honest, I lacked the testicular
fortitude to build this kit. It was my first 1/32, and I've got to say that's
its different from 1/48. Painting is more difficult because you have to figure
out a way to hold the beast. Also, the kit is old. Once completed with some good detailing it's stunning but you will need to purchase an
aftermarket resin cockpit and certain ordinance if you wish to build a Bombcat
as I did.

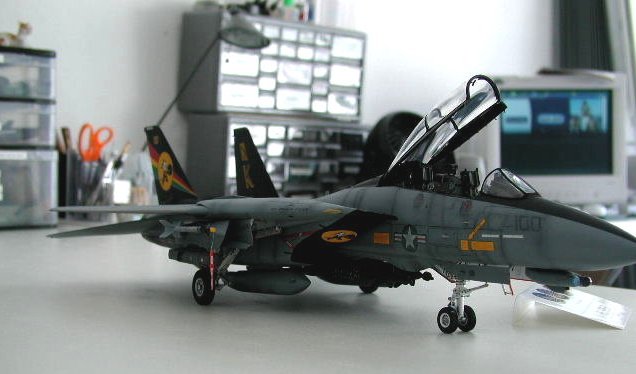

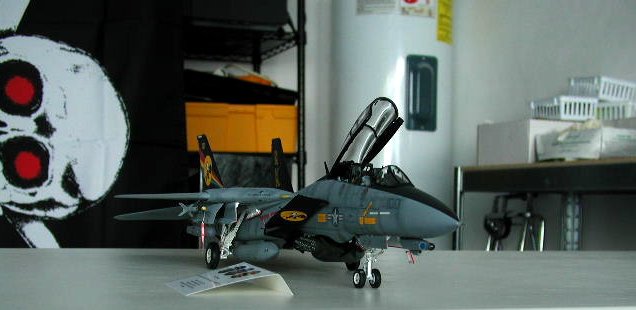

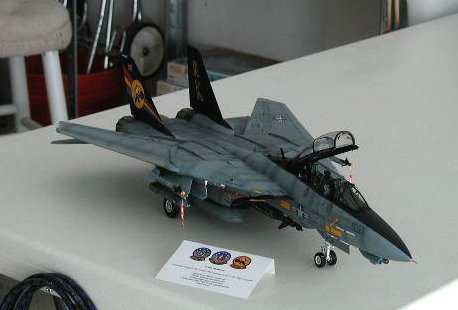

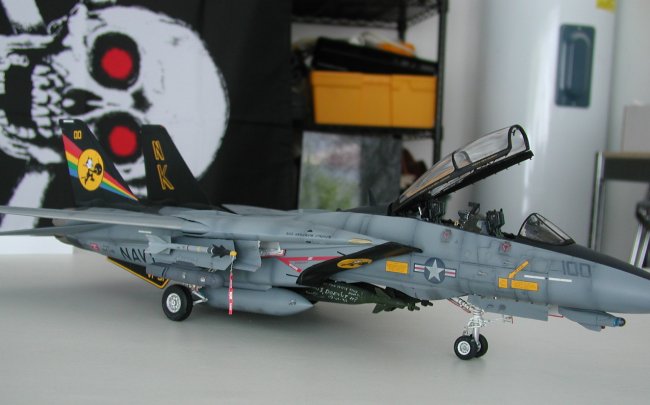

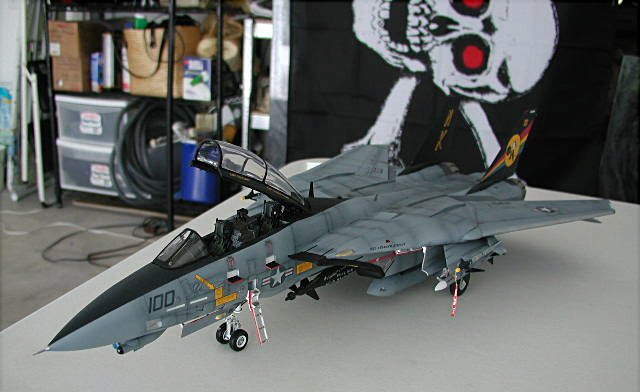

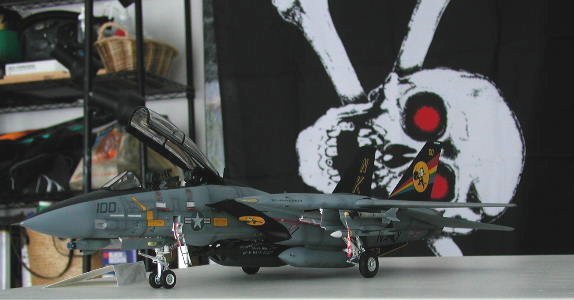

Kit: Tamiya 1/32 scale F-14A Version 1994.
Aftermarket items used:
- Teknics cockpit and airframe conversion set
- Cutting Edge Lantirn pod and adapter
- Verlinden "Remove before flight" tags
- CAM decals |
Click on
image below to see larger image
|
|
|

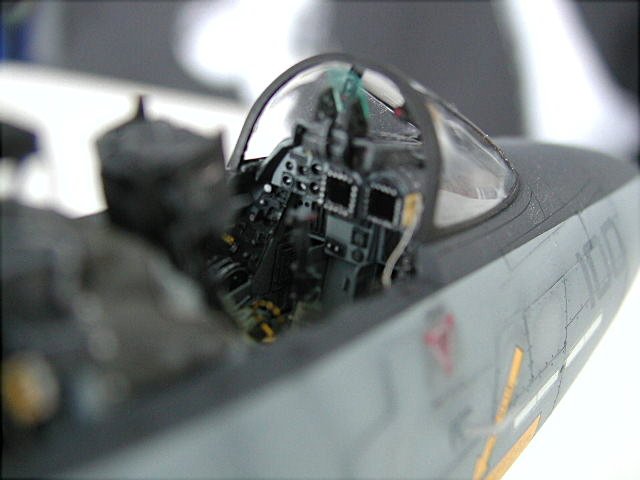

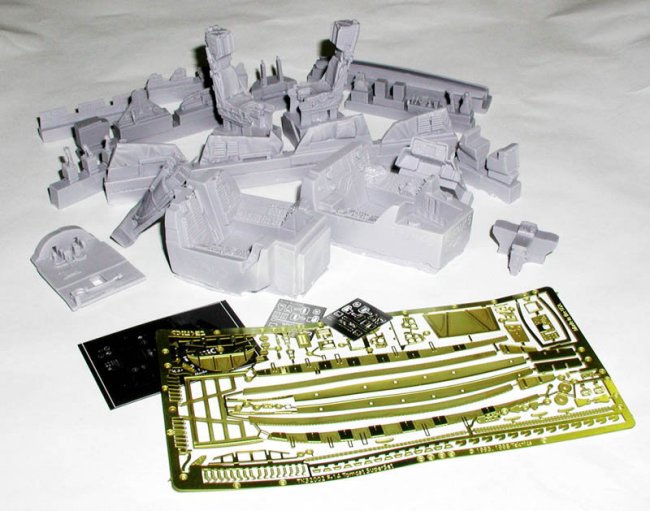

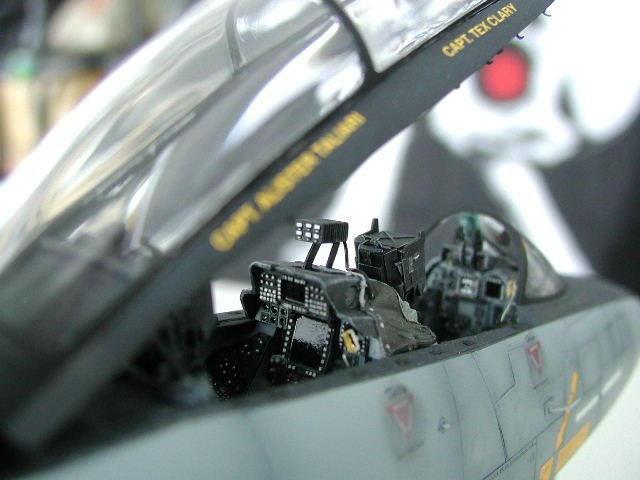

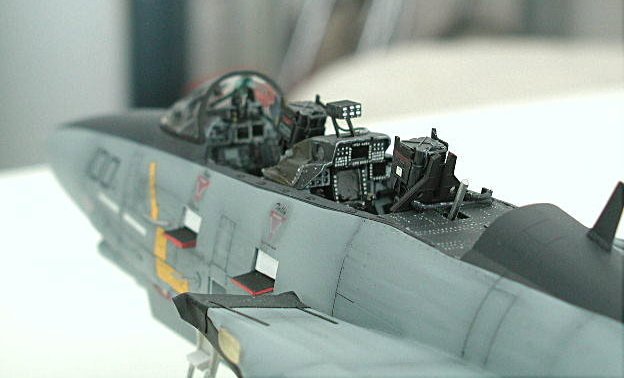

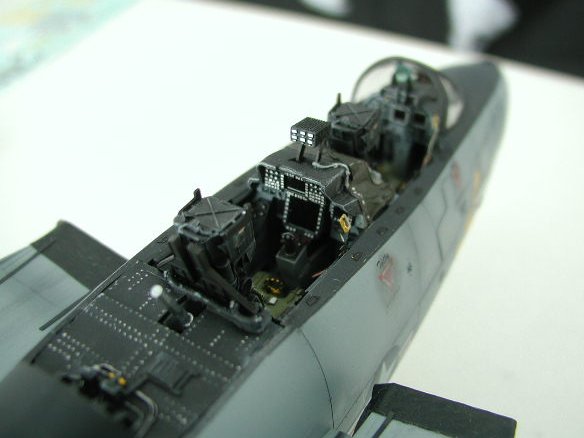

The office. I'll speak in detail of this because it interests all. I
used the awesome Teknics F-14 B/D custom cockpit set and let me tell you that
this is truly THEE cockpit to use for this kit. The switches and dials are so
nicely raised and your provided with a nice sheet of photo etch brass. I have
the Black Box set for another F-14 project which by the way is stunning in it's
own right but what really sets these two resin wonders apart is the way the
Teknics goes together. The pieces are more solid, and just sit nicer on the tub. They are like blocks that fit into place. Little to no effort
in manipulating the way the cockpit and RIO cockpits lay on the tub. More
important, you are given the option of building a Bombcat as your provided
with the PTIDS screen and Lantirn control stick. The only modification I made
were to the ejection seat handles. They looked a little bulky so I used brass
wire in lieu of the resin. I also added a wire going from the RIO's control box
to the canopy. Nice touch I thought.
By the way, get ready to sand.
I used Model Master interior black for the side panels which I find goes
on amazingly well. It applies so smooth as gives a perfect flat
appearance. The switches and dials were painted with Tamiya Alluminum and
the CRT screens were painted with MM gloss black with about two coats of future
to give a nice glass like finish.
The HUD (Heads up display) I have my Wife to thank for this although not
intentional at all. She actually has little to no tolerance for my obsession
however one night I was in the crafts store with her and don't ask me why

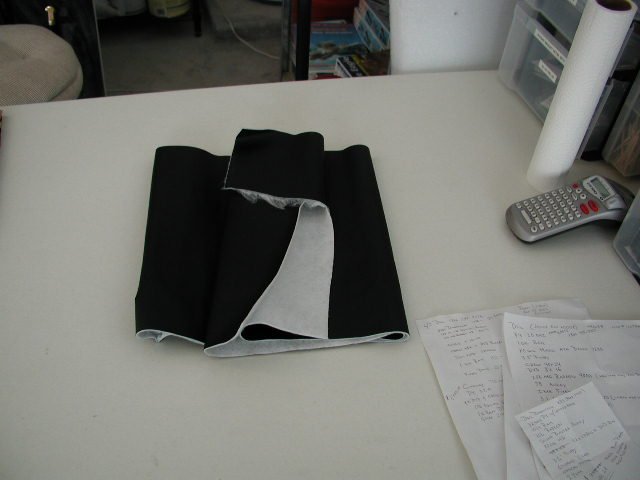

I was there I just was and by accident I stumbled across these large rolls of
vinyl material. Black, grey, red clear yellow green. When I saw the Black and
grey I stopped dead in my tracks and thought,, intake covers!!!!! When I looked
at the clear green and yellow I said to myself, HUD displays!!!
Click on
images below to see larger images
|
|
|
My good friend Doug at the Hobby Super Store once told me that when you really
start become obsessed with his hobby you tend to look at things different. How
true that is. How many times when visiting Home Depot do we walk past electrical
wire and think, wow landing gear wires. Now I'll get to the intake covers later
on but lets talk about the HUD. First I took a piece of green vinyl with a
pair of surgical scissors and cut a small piece and placed it on the already
positioned HUD frame. Using a straight edge and a razor, I now cut the desired size and shape which by the way came out perfect
the first time and glued it to the frame using white transparent glue. I used
the same technique on a Hasegawa 1/48 Tomcat along with the BB cockpit and it
came out exquisite.

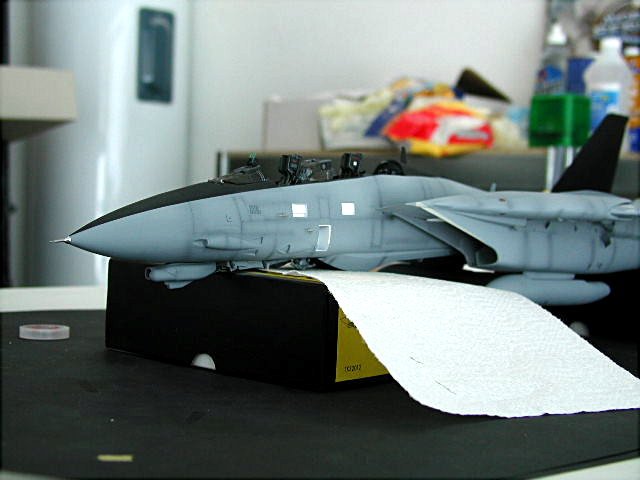

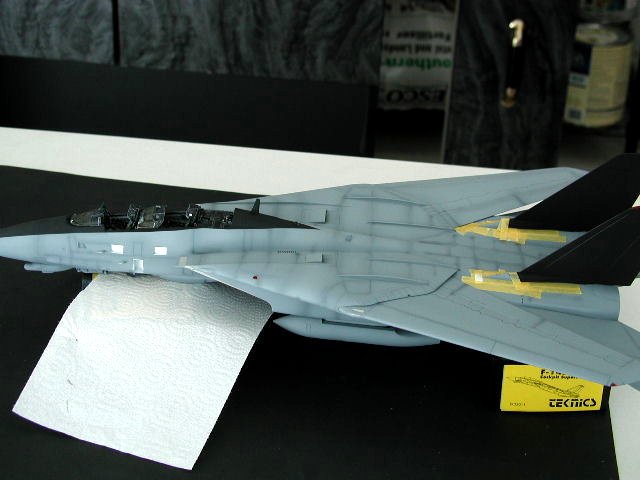

This kit is a lesson in patience. There are stages of this model when the
sanding, grinding and fitting get tiresome and frustrating but the end result is

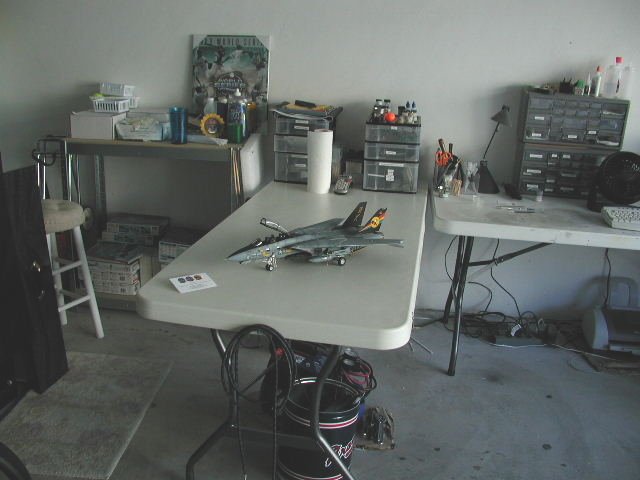

worth the wait. Some mornings I would walk through the garage and gaze at the
previous nights work and wonder what did I really accomplish?
One regret is that I should have taken more digital images when the kit
was in its raw build stages, so that if any newcomers come on board to ARC and
need reference it could have helped.
I used a variety of Tamiya acrylics to achieve the finish as I really like
the way they 'bite' onto the already primed model. They also provide a nice flat
finish which I like on Naval Aircraft. This particular aircraft is
usually depicted in light ghost grey but you know what, I don't believe in exact
replication. I enjoy simulating much better. By the way, VF-31 does in fact have
one or two of these in the dark ghost grey so there!!!

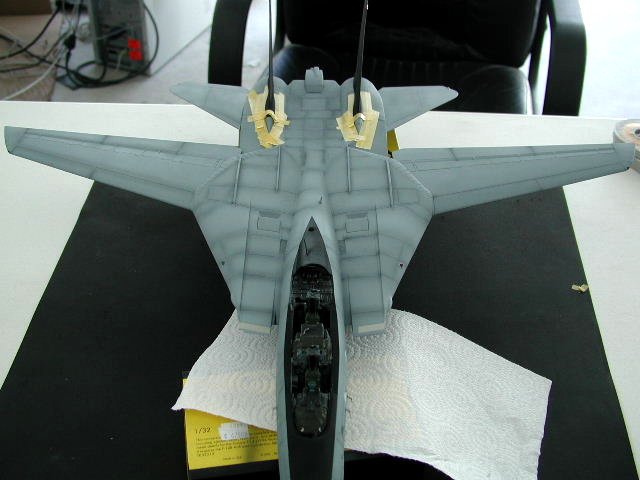

Weathering methods employed were a combination of pre-shading, spot
shooting and panel line washes. Pastel chalks were used in certain areas but not
much as I have grown to dislike them for a variety of reasons.

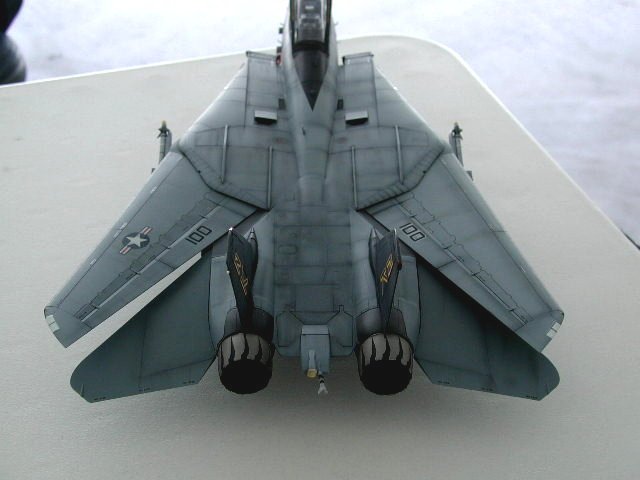

Converting the
airframe was no picnic, but not the nightmare I thought it to be. I used model
master jet exhaust for the cans.
|
Click on
image below to see larger image
|
|
|

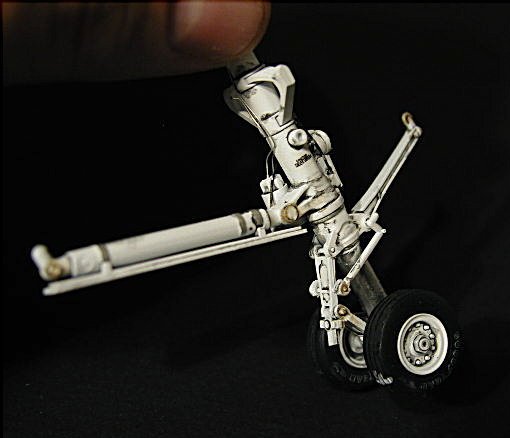

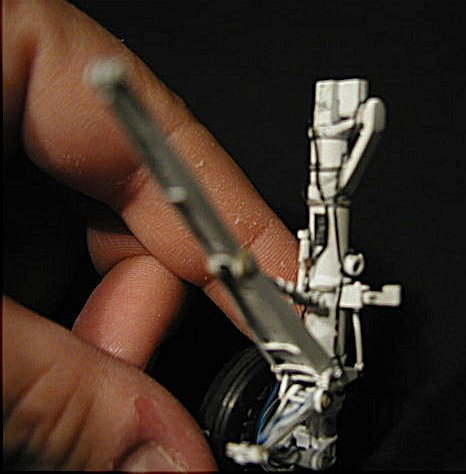

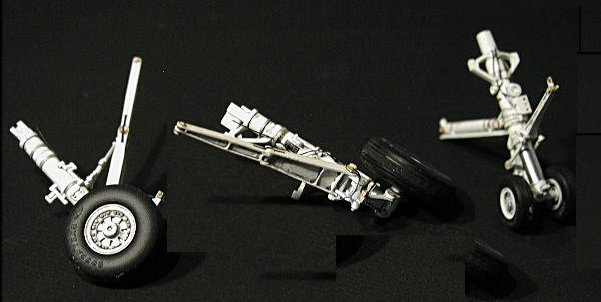

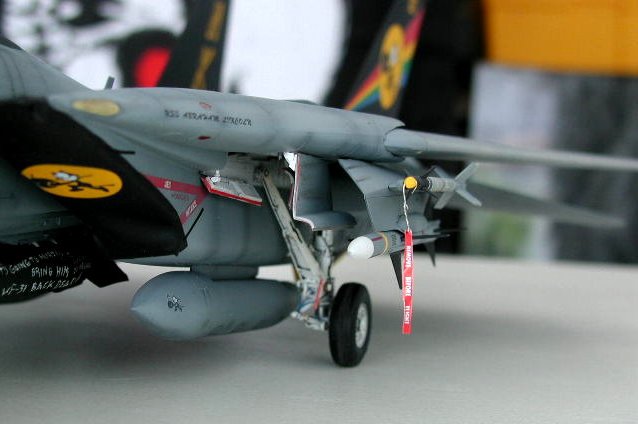

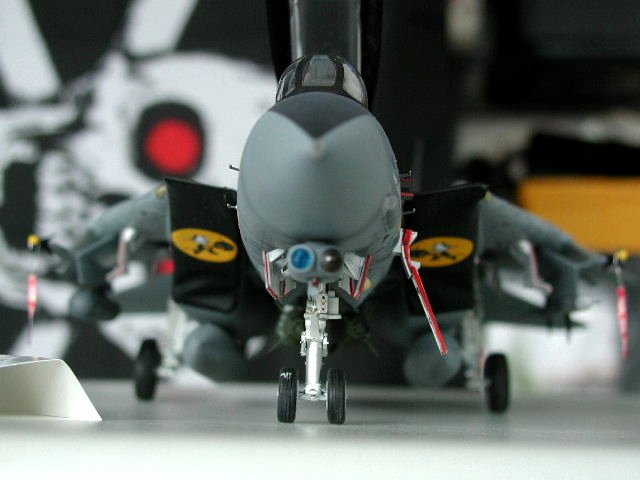

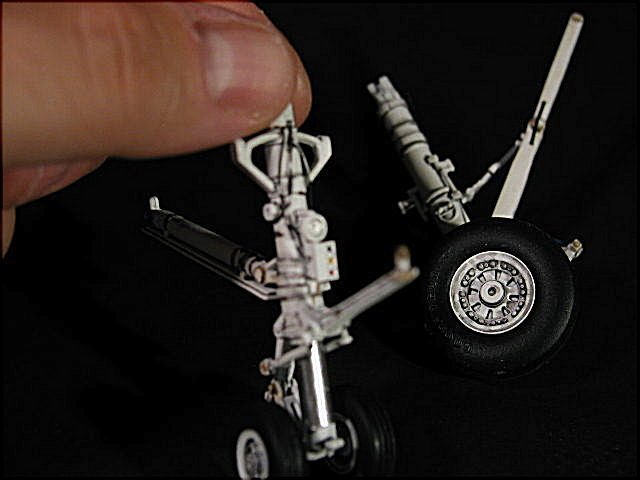

Two things that I enjoy detailing the most on military aircraft is the
cockpit and landing gears. The Tamiya kit gives you a nice gear, main and nose.
I used fishing line for the hydraulic/brake hoses and weathered the gear using
pastel chalks with a some water and dishwashing liquid. I applied this method in
the areas where the crew would normally grease. The rest of the weathering was
achieved through enamel washes.
My own website will be up and running soon. It will be a place for
modelers to visit and learn different techniques. I will post more pictures of
this particular Tomcat plus the Hasegawa F-14D I'm building now. This kit
I'm taking step-by- step images and will discuss in detail. The intake
covers were made with vinyl.
If any of you are struggling with intake covers, please feel free to email
me and I will show you the way. |
Click on
image below to see larger image
|
|
|
The guy talking on the cell phone is my pal Doug from the Hobby Superstore
where I live. He has taught me a lot of stuff over the past few years and I can't thank
him enough. This dude actually taught me to airbrush over the phone, no joke. He
builds RC cars, and airbrushes ladies nail polish on them. I laughed at first
but the end result is breath taking. The images aren't that great, but you
can see some of what the other guys who frequent this place build.
|
Click on
image below to see larger image
|
|
|
Click on
images below to see larger images
|
|
|
|

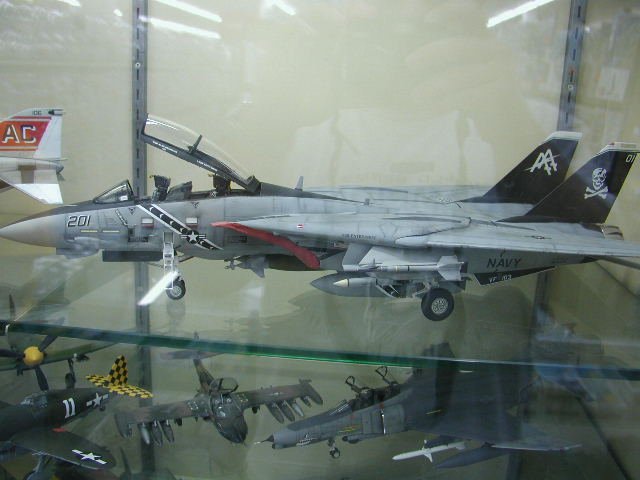

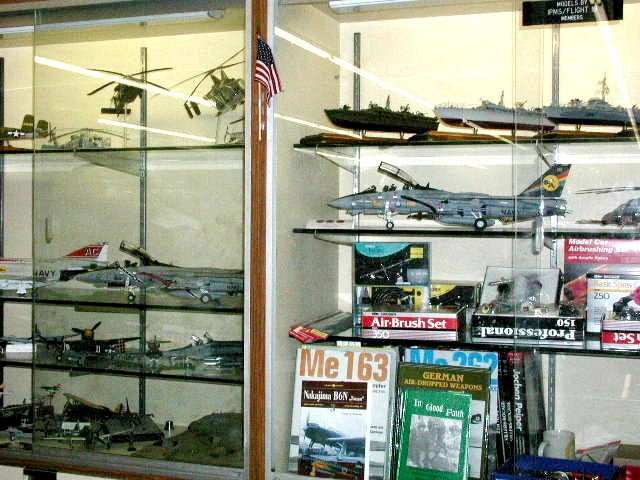

EJ's big cat in the window.
|
Nice Tamiya by Danny, same kit as mine..
|
My other
cats.
|
Sadly the time is drawing closer than we think to say farewell to our
Tomcat. Operation Iraqi Freedom is probably the last time we will see the
Tomcat fly in anger. During OIF, I recall watching CNN as the camera crews were
aboard the USS Abraham Lincoln. The newscaster was talking to one of the pilots
as an F-14D sat on the catapult in the background about 2:00am. They were
situated in the middle of the sea and the darkness seemed hauntingly eerie.
Watching the F-14 barrel down the carrier deck and light up the Indian Ocean
with it's huge GE-110's afterburning flames was an incredible sight to behold..
The F-14 was from VF-31 and the camera crew also got into VF-31's briefing
room. Of what I saw was a banner on the wall of Felix carrying the bomb with the
rainbow behind, much like what's on the tail of this kit. Well, that
inspired me to model that squadron. The pilot being interviewed spoke of dodging
SAM's for what seemed to be the longest 7 minutes of his life. The F-14's
launching that hour were looking for any resistance from MiG-25's.
Evolution.. Sad but true. Now I guess this is how the F-4
Phantom guys felt.
EJ
|
|
