This is my build of
this limited run kit. It was built totally oob (including decals) and
scratch. Challenging and fun. The kit comes with a resin cockpit (without a gun
sight), wheel wells with zero detail and a small pe fret. This part 2 of 3 of my
"It's the economy stupid!" builds. Where I do not allow my self to
purchase any am goodies or paint. All colors were mixed using what MM enamels I
had on hand.

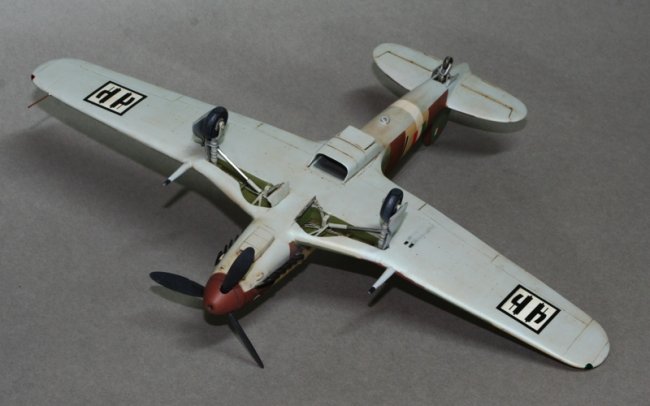

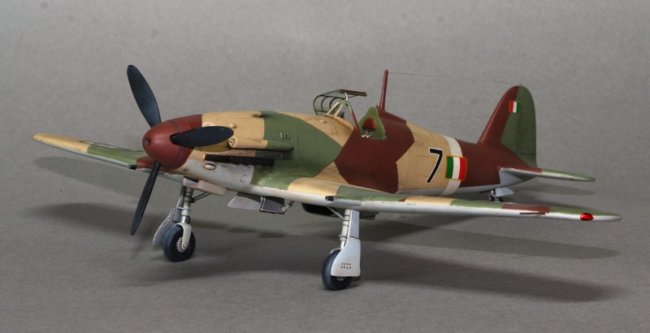

Underside-French
Light Blue+Gull Grey. Sand- Gulf Armor Sand+Euro Grey+White. Red Brown- Testors
(little square bottle)+Yellow+White. Olive- French Khaki+Yellow+White. The anti
collision light are Tamiya clear red for port side and a 50/50 mix of Tamiya
clear blue and clear green for the starboard side. Most of all the panel lines
were filled with paint (they were faint to begin with) so I just drew them in
with a Derwent water color pencil.
Click on
images below to see larger images
Fit was ok at best. The
only major issue was, to be able to assemble the wing halves and the wheel
wells, everything had to sanded to an almost transparent state. The
cockpit walls were about the same scale thickness as M-4 Sherman armor. So
they got the same treatment. Wheel well details, gun sight and tail wheel
details and doors were made from scratch. I also wanted to pose the canopy
open. Using the best walk around photo gallery I have ever seen, I
scratched out the mechanism using styrene, brass wire and white glue for
the knobs. The super charger intake and under wing scoop are screened with
1/72 scale .30 caliber machine gun cooling jackets. Knew I'd find a use
for them one day.
The cowl gun guns
were pretty sad. So I drilled out the openings and used brass tubing for
barrels. I drilled out the barrel muzzles of the wing guns then puttied and
sanded them flush with the leading edges. The pitot tube is brass wire that I
drilled out the center of. The radio mast is made from scratch because
I broke the kit one. (Of course) The main wheels were detailed with a twist
drill, axle nuts made with my Waldron punch and die set and wire for brake
lines.
I primed with Tamiya
Lacquer in the rattle can. Painted, mask, painted then masked some more and
so on. Covered with Future, decaled, few more coats of Future, weathered with 2
different colors of oil wash and pastels. I wanted a really dull coat finish. I
mixed MM acryl clear flat and Tamiya flat base to get what I wanted.
Monofilament thread for an aerial wire and voila!! Silver Bullet time!
Paul R. Miles
"Huey Gunner"
