Modified ICM 1/72 Tupolev TB-3 / G-2 -Reloaded-

Gallery Article by Gabriel Stern on Feb 10 2011



   A few years ago I survived my encounter with the ICM Tupolev TB-3 kit that I converted to a civil version (known generically as G-2):
http://www.arcair.com/Gal5/4501-4600/gal4561_TupolevTB-3_Stern/00.shtm

   Since then three things happened:
1) I became more proficient making my own decals.
2) I gathered a bit more references on the type
3) The TB-3 model –a huge model with some serious mass- suffered a panne and was smashed.

   Considering all of the above I decided to “update” the model, although I usually don’t particularly like to dwell on the past, and pretty much leave the models alone once built.

Click on images below to see larger images







   The tasks at hand were:
1) To remove the old –and therefore absolutely fused on the surface- decals.
2) To design and print new (correct font) ones adding some lettering missed before.
3) To build new skis according to better references (wider and wood-colored)
4) To partially re-rig the model’s wires in a darker-colored filament (I had used silver-colored ones which couldn’t be told apart from the model background).
5) To remove the cover of the cockpit area and make a new one, a bit more accurate -shallower among a few other things-.

    As you well know removing old decals can be challenging, more so if the surface of the model is finely corrugated. In the process –and although I don’t consider myself clumsier than a Malabama Swamp Monster- I managed to knock off the four engines, the tail ski (yes, ski, not skid), the ailerons, the rudder and a few other miscellaneous bits.

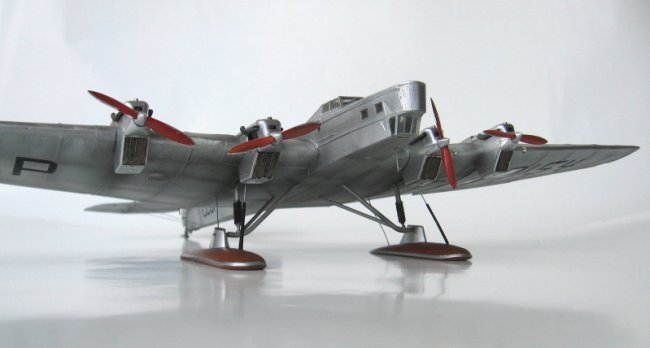

    The new skis were carved from basswood, painted and varnished, and then a “metal” strip was added to emulate the original. A pedestal for the axles was then glued.

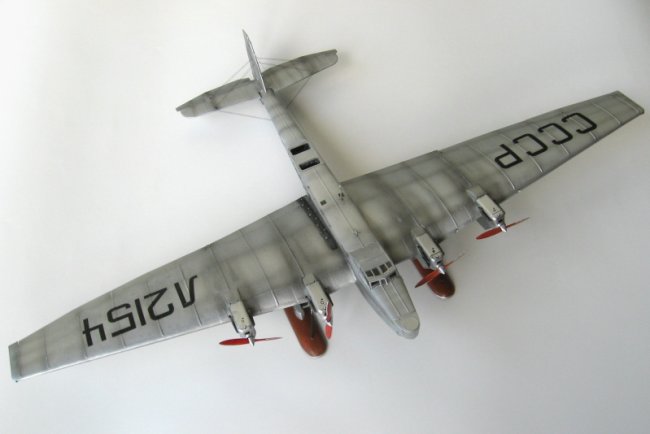

    The new decals were applied, a task always a bit tricky on a corrugated surface. After I took all the photos I realized that I didn’t apply the AEROFLOT decals (in Cyrillic naturally). Those were added after the photo session (no way I was going to handle the beast again for another session).

    Then all the detached parts and small parts that were knocked-off during repairs had to be put back in place, carefully since the massive model requires attentive manipulation.

   Under proper Aeroflot management, and now a bit more accurate thanks to the “accident”, this dinosaur from another era is ready again for some serious load transport on the white expanses of Mother Russia.

Gabriel Stern

Click on images below to see larger images

















Photos and text © by Gabriel Stern
