1/48 Hasegawa Bf-109G-6/R6

by Anthony Manzoli

--------------------

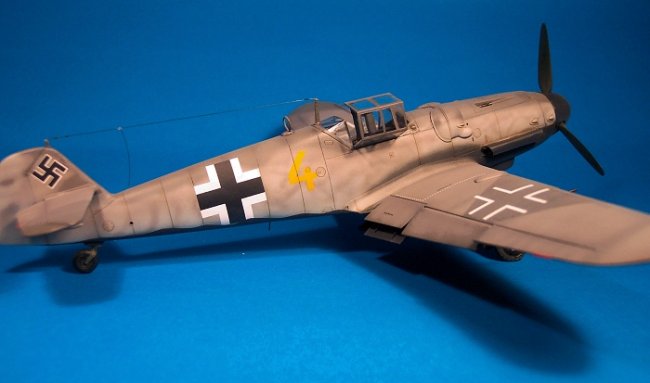

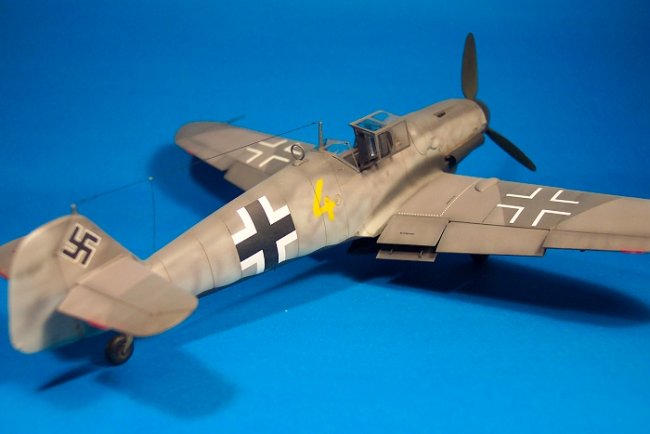

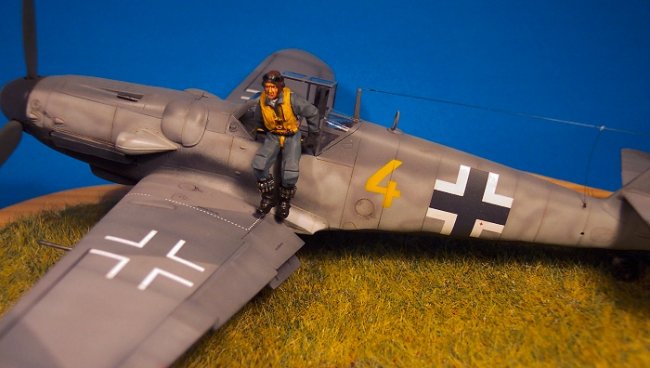

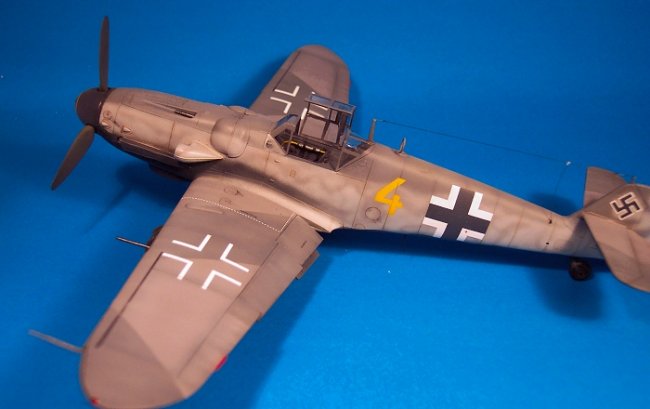

 "Gelbe 4" of  JG.300 flown by Lt. Manfred Dieterle, Bonn-Hangelar, Germany 1944

This particular aircraft sported the experimental camouflage of RLM 74/75/76 over black,  the sides of the fuselage having irregular RLM 75 squiggles.   Also the aircraft was fixed with exhaust shields to dampen the flames.

Construction: of the kit is straight forward with additions of Eduard's Zoom Interior detail set, which includes a small fret of photo etched parts such as instrument panel, various side panel details rudder pedals and seat belts.  I also added the oxygen line to the side panel made from fuse wire, brake lines to the struts, flame dampeners over exhaust, True Details weighted resin wheels, ribs for the inside of the flaps and antennae wire from invisible thread.

Click on images below to see larger images

Painting: Once construction was finished the model was preshaded with RLM 66, then followed with the RLM 76 and 75 freehanded.  I masked the upper wings and painted the RLM 74 and free handed the upper fuselage.  My next step was to fade the RLM 74/75 with lightened colours using a few drops of RLM 76 mixed in with the 74/75 and lightly hit the panels. Once the paint had dried, I masked the upper fuselage and painted the underside with flat black and highlighted the panels and panel lines with black mixed with RLM 66 to give some contrast to the matte black.

Decals: are from the Eagle Cal sheet #12 Bf 109 G-6's JG 300 "Wilde Sau"  this sheet offers decals for four different G-6 night fighters.  The decals went on very well although I pulled one of the yellow 4's off when I masked to paint the underside, so I ended up tracing the four off the decal sheet and making a stencil and painting them on myself using RLM 04.  This aircraft did not have much for stenciling since it would have been over sprayed.  Before the decals were applied, I used a soft flat brush to apply Pascoes Long Life to the upper surface.  When this was dry the decals were applied and then Pascoes Long Life was mixed with Tamiya Flat Base and applied for the matte coat.  Final details included adding some small chips on the upper wings with silver pencil, exhaust staining with thinned Gunze soot, and some light weathering using pastels.

Anthony

Visit my website at The Model Hangar

Click on images below to see larger images

Photos and text © by Anthony Manzoli
