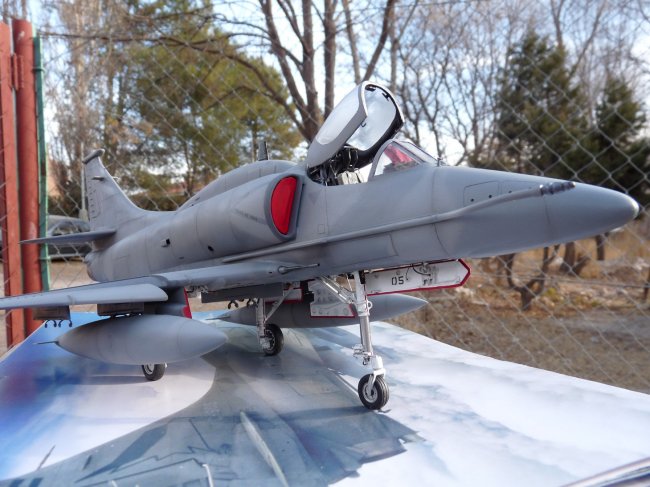

1/32 Hasegawa A4-AR Fightinghawk C-905

Gallery Article by Daniel Colombi on July 12 2010



My conversion started with a Hasegawa 1/32 A4-E/F model kit.  My research data was found at “V Brigada Aérea – Villa Reynolds – San Luis – Argentina” (A4-AR home base).  Many pictures of A4s units helped my work.

Bibliography:

  • Walk Around A4 Skyhawk - Squadron Signal, Aeroguide 14 - Skyhawk A4-M – LineWrights,
  • A4 Skyhawk In Action - Squadron Signal,
  • Warpaint Series N° 3 - A4 Skyhawk - Aviation News,
  • Pictures of “Puertas Abiertas” Villa Reynolds - 08/2005, Calendar 2008 - V Brigada Aerea - Villa Reynolds, www.hangardigital.com.ar

Click on images below to see larger images

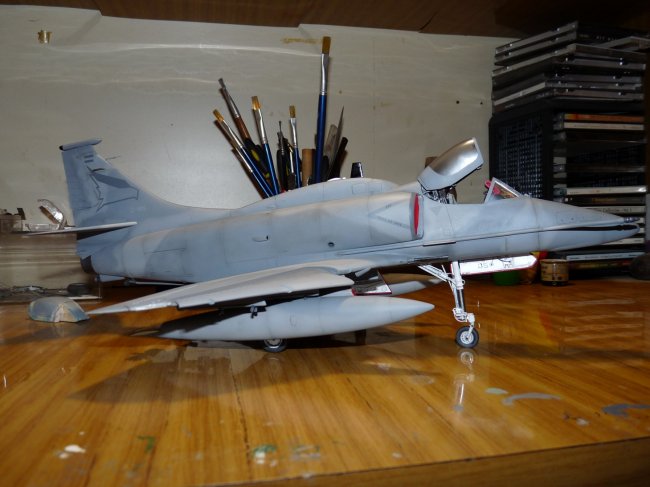

Modifications to the fuselage:

  • Expand of the air intake.

  • Expand of the cell of the fuselage.

  • Opening of the cockpit to receive the windshield of greater size.

  • Modification of the Rudder and aggregate of antenna.

  • “Hump” made in wood and putty.

  • Canopy made in termoform plastic on carved and polished wood matrix of pine.

  • Support of the main canopy, with closing system.

  • Stretched of the exhaust.

Complete cockpit in Scratch:

  • Stick Control.

  • Board and panels.

  • Escapac IG-3 seat in scratch.

Undercarriage and Bays.
Scheme and Marks of A4-AR C-905

Daniel Colombi

Click on images below to see larger images

















Photos and text © by Daniel Colombi
