1/48 Accurate Miniatures Avenger

modified to a Canadian AS-3

by Ron Patterson

--------------------



I thought I would submit another article to this great web site. This is my recently completed RCN AS-3 Avenger built buy modifying the Accurate Miniatures Kit.  Being a Canadian myself I like to build a little Canadian content once and awhile.  Allot has been written about this excellent kit by Accurate Miniatures so I won’t bother with the build details here.  The modification kit I used comes from Belcher bits in Ontario. There are some resin components for the modifications along with two vacuformed canopies and a very complete decal sheet in this kit.

Click on images below to see larger images

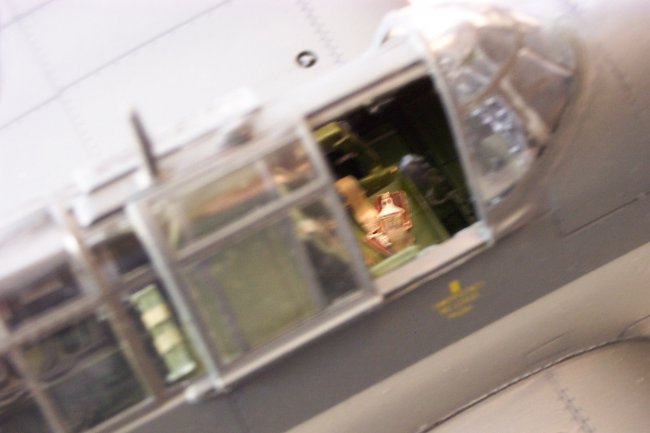

The main modifications are the elimination of the ball turret and addition of an observers seat in place of the ball turret.  The vacuformed canopy is intended to replace the kit canopy from behind the pilots seat back. I felt the molding of the canopy frames was weak with this canopy and opted to use the kit canopy and graft the rear portion of the vacuformed canopy to enclose the area formally occupied by the ball turret.  There are some resin bits to fill depressions molded into the fuse above the exhaust (behind the cowl flaps). Resin fillers are provided to replace the ventral machine gun and glass window with a flair tube. A mount is included to relocate the tail hook from exiting the rear most part of the fuse to the lower rear of the fuse.  The left and right ventral windows in the kit need to be filled and painted over.  A resin radar pod is also included in this kit. This aircraft is supposed to retain the wing mounted rockets from the kit or at least the mounts. My Accurate Miniatures kit was one of their first releases and did not have the rockets included and my parts box is missing rockets, therefore this example does deviate from reality with these being omitted.



The entire model was airbrushed using Humbrol enamel. Extra dark sea grey on the upper surfaces and sea grey medium on the lower surfaces. Weathering was done with a dark grey oil wash and a little pastel.

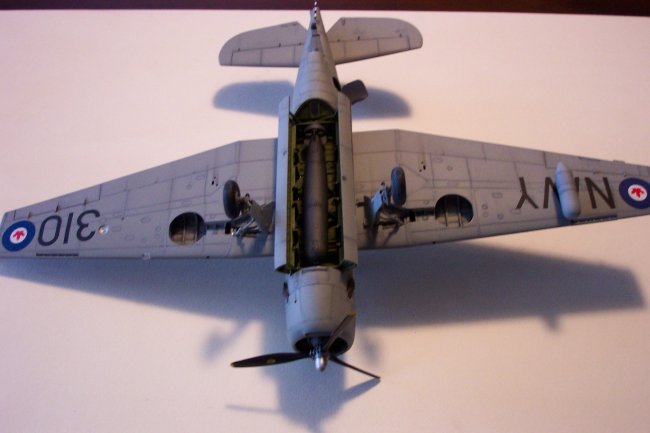

I added the kits torpedo to the bomb bay. I admit I am not sure if the RCN AS-3’s even carried one, I think not but it looks good.



There is enough decals in this Belcher kit to build an early Canadian TBM in Gloss sea blue, I'll have to add this to my to-do list of kits.

Ron



Click on images below to see larger images

Photos and text © by Ron Patterson
