1/48 LTD IAR-80

by Ion Tesu

--------------------

  Romania National Day 2005



The LTD kit has been presented in the past, so I will jump directly to construction details.

Construction

As a general note, the kit sprues are quite thick. Be careful when removing the parts such that you do not clip into the actual part. You will have to do a lot of heavy filing to remove the extra plastic from the parts.

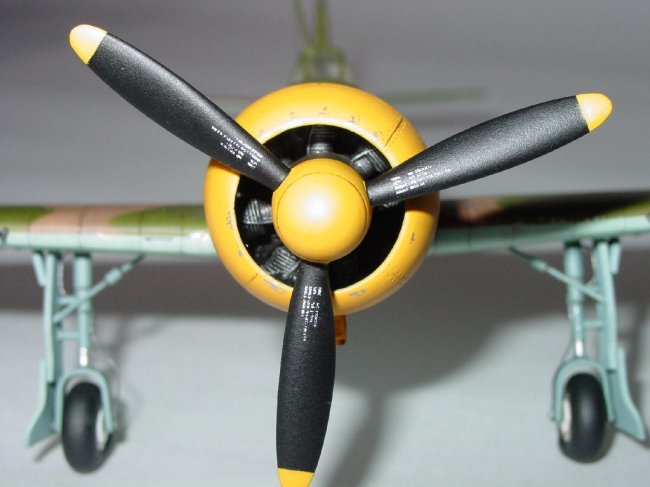

I started with the wheel well piece. It leaves holes in the fuselage, so I decided to fill them with thin styrene strips. I recommend this step, as it provides a better look of the undercarriage. After gluing the wheel well, I had to do some heavy filling in order to fit nicely the wing parts. I continued with the spinner, propeller blades and crank case housing. After gluing them together, I painted the ensemble, busied the blades with one decal each and applied a flat finish. I sat them aside for final gluing on the engine.

Click on images below to see larger images

The cockpit followed. It has levers, rudder pedals, longeron and structural details, and an instrument panel, all on a floor board. The interior got painted with Light Gray FS36622. I weathered it with raw umber and then I applied a flat coat. All the little details got glued, including the instrument panel. As the instrument panel provided by the kit is quite basic, I decided to improve on it by adapting one from the F2A Buffalo from Eduard. Yeah, I know they are not identical, but they are close enough. The extra work with the PE parts and the acetate foil pays off in my view. I also decided to switch the kit seat with the True Details #48411 F6F Hellcat seat. To make it look more like the Romanian seat, I had to clip the right and left extremities on the seat top. Trial fit the floor board to make sure it is not too wide before fitting it into the fuselage. I glued mine on one of the halves while having the entire ensemble in place together. An additional note on the instrument panel. It is positioned too much towards the nose of the aircraft. Later on, this is obvious, when the exterior antenna has nothing to sit on.

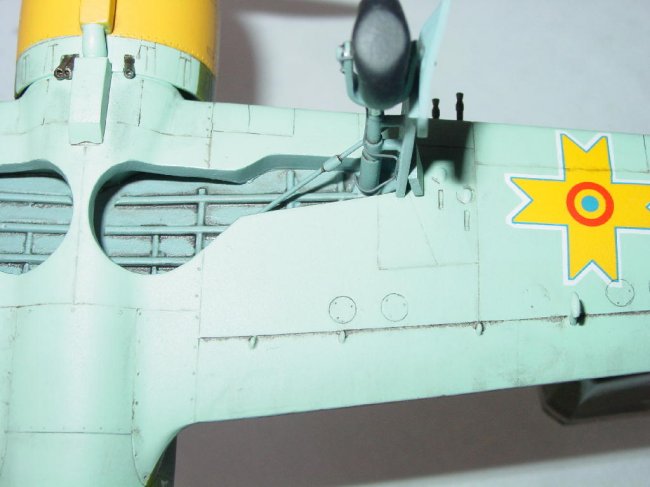

I moved on the body, gluing the two halves together. All the gluing on plastic was done with Tenax. The seams between the halves were filled with Tamiya putty. I had to use the sanding sticks to make the entire surface smooth. I masked the interior of the cockpit having it ready for painting. The wings followed. The three parts were glued together. Then the aircraft body was attached to the wings. At this time I painted the wheel wells with Dark Gray (FS35237) glossed and weathered them. The wheel wells were masked to prepare them for the body painting job. To complete the body, the horizontal stabilizers were attached as well. Also, I decided to add at this time the exhaust ring and the two side exhausts. Having the side exhausts and ring in place, I put together the cowling. Here one problem shows up: the cowling does not slide long enough on the exhaust ring to barely touch the fuselage. You need to file and dry fit until the model looks to your satisfaction. Next, I painted the body. While waiting for the paint to dry, I put together the engine. The engine cylinders are flat black, dry brushed gently with Testors silver chrome.

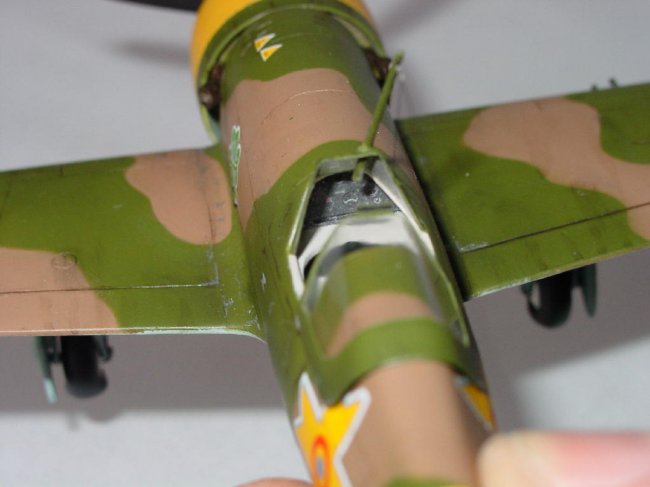

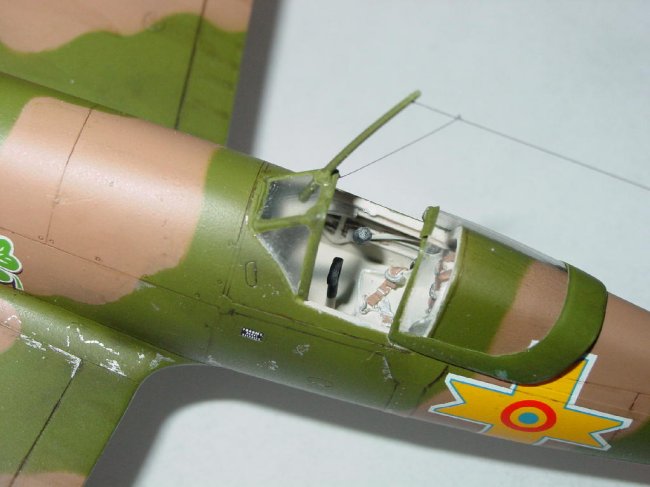

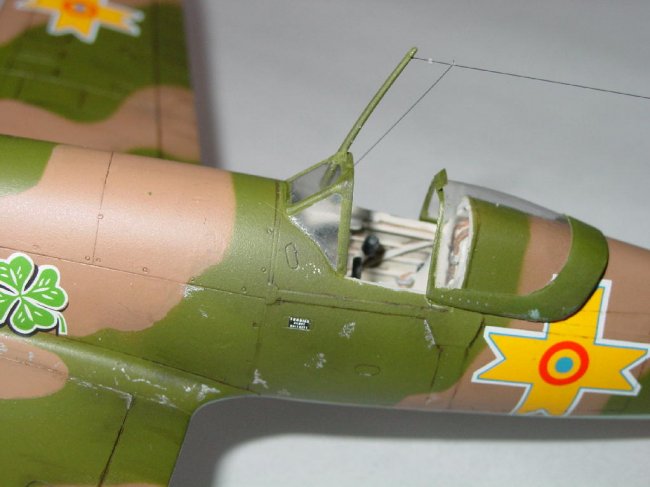

Although the kit vacuform part has a small but visible defect, do not fear. A vacuform cockpit for IAR-80 is offered by Falcon, Set No. 37, part 2. It has no defect and it can be positioned open. I went for the open position. I decided to add the little rear view mirror on the edge of the moving part of the canopy. Next, I put together the landing gear assembly: wheel well doors, landing gear and tires. As True Details provides a set of bulged tires specifically for IAR-80, I could not help myself and use those, instead of the kit provided ones. Brake-lines are easy to add and provide a definite plus to the model. I added them. In the final assembly, I switched the kit provided machine-guns with the Aries MG131 1/48th scale Machine guns.

Click on images below to see larger images

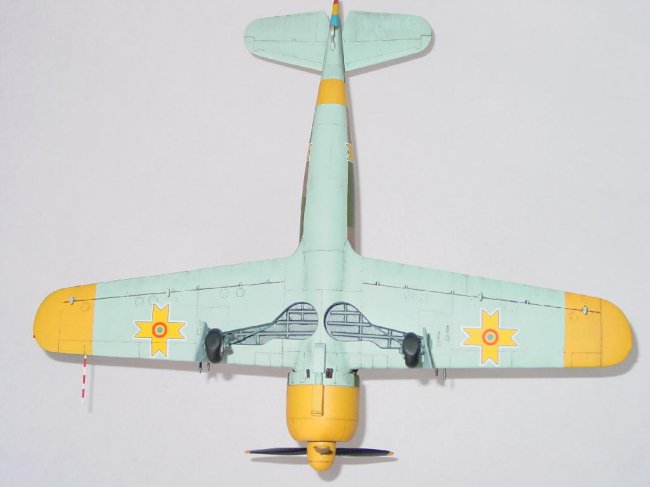

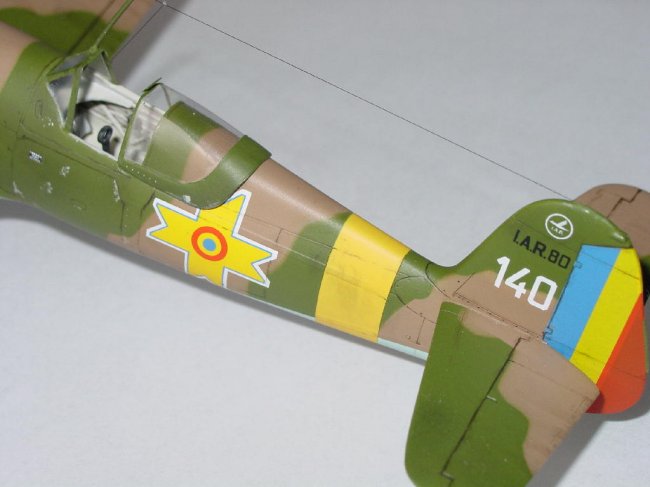

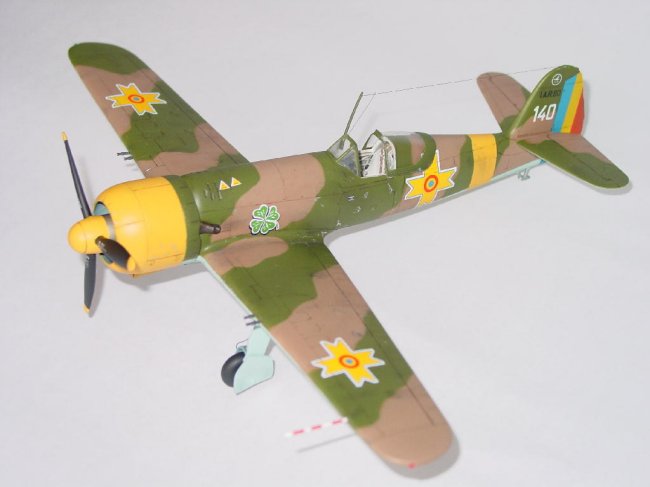

A few words about painting the model. I decided to go for the “lizard” scheme camouflage. It is made of stripes, Tan and Dark Green over Light Blue. The spinner, propeller tips, cowl, lower wing tips and rear fuselage band are in chrome yellow. The markings are for the airplane flown by “Locotenent aviator” Ion Galea. The colors used are:

  • Interior: Light Gray  FS36622

  • Wheel Wells: Dark Gray FS35237

  • Tan FS30219

  • Green FS34127

  • Light Blue: equal quantities of FS35414 and FS35622

  • Yellow FS13538

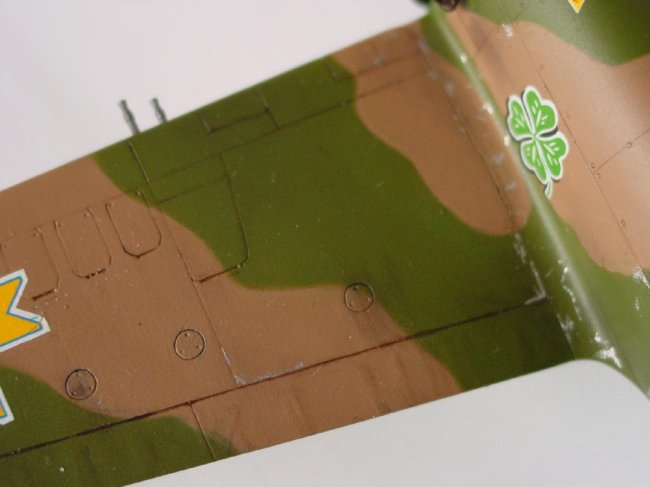

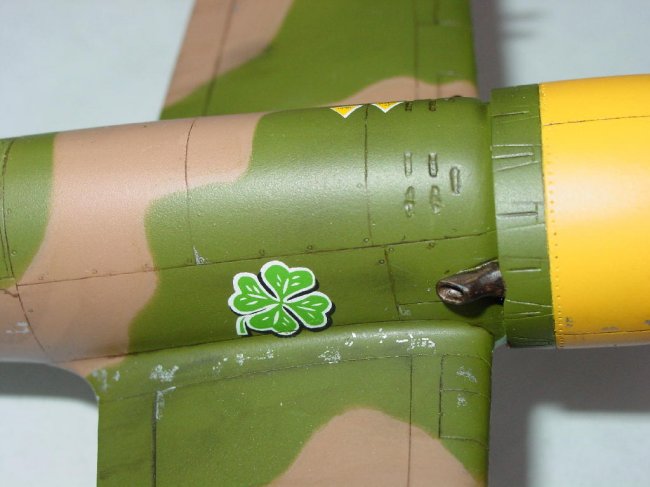

In an attempt to represent some wear and tear on the fuselage, I decided to use the Gekko Metalized decals. The problem that I encountered was that the individual decals are big enough to create an unrealistic look to the model. The solution is to apply them, as usually, on a glossy surface and then use the tip of an exacto knife and easily scratch the decal until it resembles the desired texture and form. The weathering was done with raw umber dissolved in mineral spirits and applied after the entire model was coated with Polyscale Acrylic gloss. Also all the exhausts were painted raw umber. It took me 40 hours to complete it, on a period of almost three months. The kit was a pleasure to build, and I recommend it.ree months. The kit was a pleasure to build, and I recommend it.

 Enjoy the pictures.

Ion

IPMS Austin, TX
