Virtual 1/24th D520

3D Mounting notice

by Laurent “Angus” Beauvais

--------------------



   Maybe you remember my deliria realizing with CATIA a virtual plastic model of the D520    http://www.arcair.com/Gal6/5801-5900/gal5829_D520_Beauvais/gal5829.htm  . Recently, my company has bought a start-up specialized in documentation, and when I learned the product, I told myself “whaou, that may be fun on my D520”.

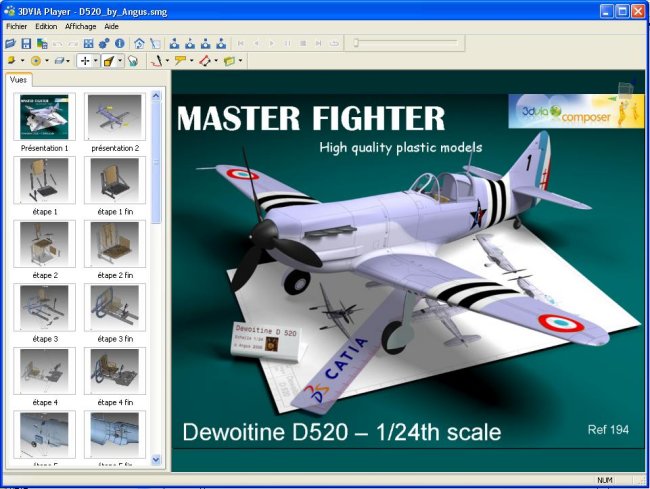

So let’s imagine the plastic model of the future, with a mounting notice in 3D. I’m crazy ? load this file (9 Megs) http://r1cmaf.free.fr/Maquettes/D520_CAO/D520_by_Angus.exe and run it, you will just have to slide the small views in the main window to see the 3D notice.  I let you the authorization to annotate, rotate, zoom, clip, and so on, hope you will enjoy.

Laurent
