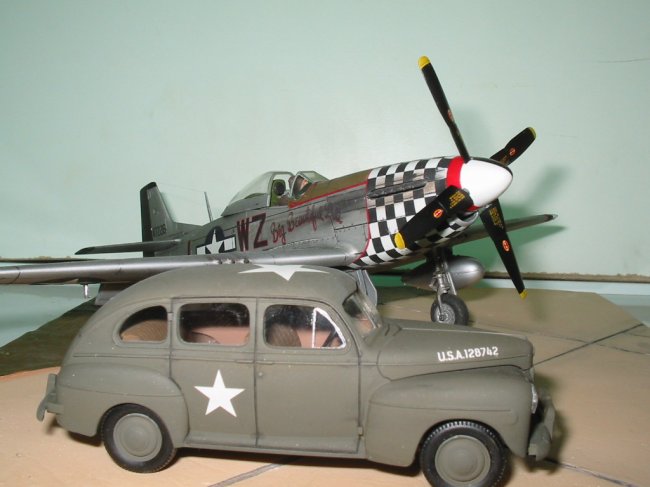

Kit:Tamiya P-51D
Mustang & U.S. Army Staff Car 89732
Construction:
I saw this kit on
Tamiya's web site and thought that it would make a great addition to
my W.W.II aircraft collection. I sent Calum an E-mail to ask if he could
order it for me, and sure enough I received it in the post with a few other
kits. This was the first time I had seen the Tamiya P-51D up
close. I had constructed the P-51B some years ago and knew that the P-51D
would be just as good with all of Tamiya's class that is in every kit.
I
decided that I was going to build this kit OOB, Tamyia included three
figures with the kit and I decided to use one of the pilot to place in the kit
when it was finished. I started re-scribing the entire kit before assembly I find
that this can help down the track with paint and decals. The only fault I
have with Tamiya and I have said it in other articles that there is no detail on
the cockpit control panel the only choices are to use the decals or buy an aftermarket control panel.
As I was building the kit straight from the box, I used the
decals on the control panel. Once I had painted and assembled the cockpit, I hit
the cockpit with a dry brush of sliver and then went over it with Tamiya's
weathering master set B to dirty up the cockpit. With the cockpit assembled it
was time to glue the fuselage halves together with Tamiya's extra thin cement
which if used right is a great to assemble kits. The more patience you have
with applying the cement the less work later on with getting rid of the
seam lines. I can not say I had any problem with the construction of this P-51D.
It went together with little fuss and minor wet rubbing.
Construction of
the Staff Car:
The Staff car is
very straight forward to build, Tamiya has given the car a die-cast chassis
so some super glue will be required with the assembly. I painted the interior
using Model Masters Tan and dark Earth as well as flat Black. I went over
the interior with the Tamiya weathering Master set B to give it a little
depth. The body of the car was painted in Model Masters Olive Drab ANA 613,
followed up with a gloss clear ready for the decals. Once the decals were
in place, I added an other coat of gloss clear followed up with a coat
of Matt clear to finish of the body. I then assembled the windows
and wheels and screwed the body to the chassis. Staff car completed.
Click on
images below to see larger images
Picture 03 and 04 shows the
decals on the control panel, I used Polly Scale softening solution 505401
to place the decal on the control panel and make it sit right.
Paint and Decals:
I have always liked the P-51D Big
Beautiful Doll, however those decals were not included with this kit, I had
another Tamiya P-51D kit 61089 that I brought from Craig at Aeroworks around the
same time as when I received this kit. Kit 61089 had the decals for Big
Beautiful Doll which I decided to use here. The other P-51D that I got off Craig
is having the full Aires detail set put in and it would have been a waste of time
trying to put the decals Big Beautiful Doll on it. I painted the overall kit in
Model Master Aluminium Plate and on top of the cowling I used Model Master Olive
Drab 34087 with Model Master gloss Black for the tail etc. I then Painted the
entire kit with Gloss clear ready for the decals. I found the decals a little
tricky to get right especially the checkered decals. A lot of patience was required
with these decals. Kit 61089 included two options of Big Beautiful Doll on the decal
sheet years 1944 and 1945. I decided to go with Col. John D. Landers,
Commanding Officer of the 78th Fighter Group 1945. John had racked up some more
kills on his P-51 during the summer of 1945. With the decals in place, I went
over the kit again with gloss clear to seal the decals on and ready it for
the pastel wash. Once the panel lines were highlighted with the paste wash I
went over the kit again with Gloss clear to seal in the Pastel, I know it seems
like a lot of paint is placed on my kits especially clear, reason for this
I have found that in the past I would only use two coats of clear on a kit a
layer before decals and a layer after the decals were placed on the kit. I would
then place a coat of matt clear on over the kit, however I found that sometimes
I would get slivering around the decals so now I use a third layer of clear over
the pastel wash to try and eradicate the slivering problem, before I applied a
matt coat of clear. Once I have placed a layer of matt clear over the kit, I get
out the Tamiya weathering master set normally set B and add exhaust stains,
soot around the guns and I dirty up the wheel bays, followed up with some matt
clear only over the weathering master chalk to seal that in.
Finish:
It was now time to
add the landing gear and doors, pilot, drop tanks, propeller and cockpit window.
I used seat belts from the Aires set from my other P-51D which is still being
assembled and placed them over the pilot, and another kit is finished.
Thanks:
-
To Steve Bamford
whose dedication to this site does not go unnoticed.
-
To Calum for
getting a hold of this kit for me, check out Calum's web site at www.gibstuff.net for
a look at kits for sale, kits Calum is building or some great Photos of
aircraft, ships etc.
Alan
